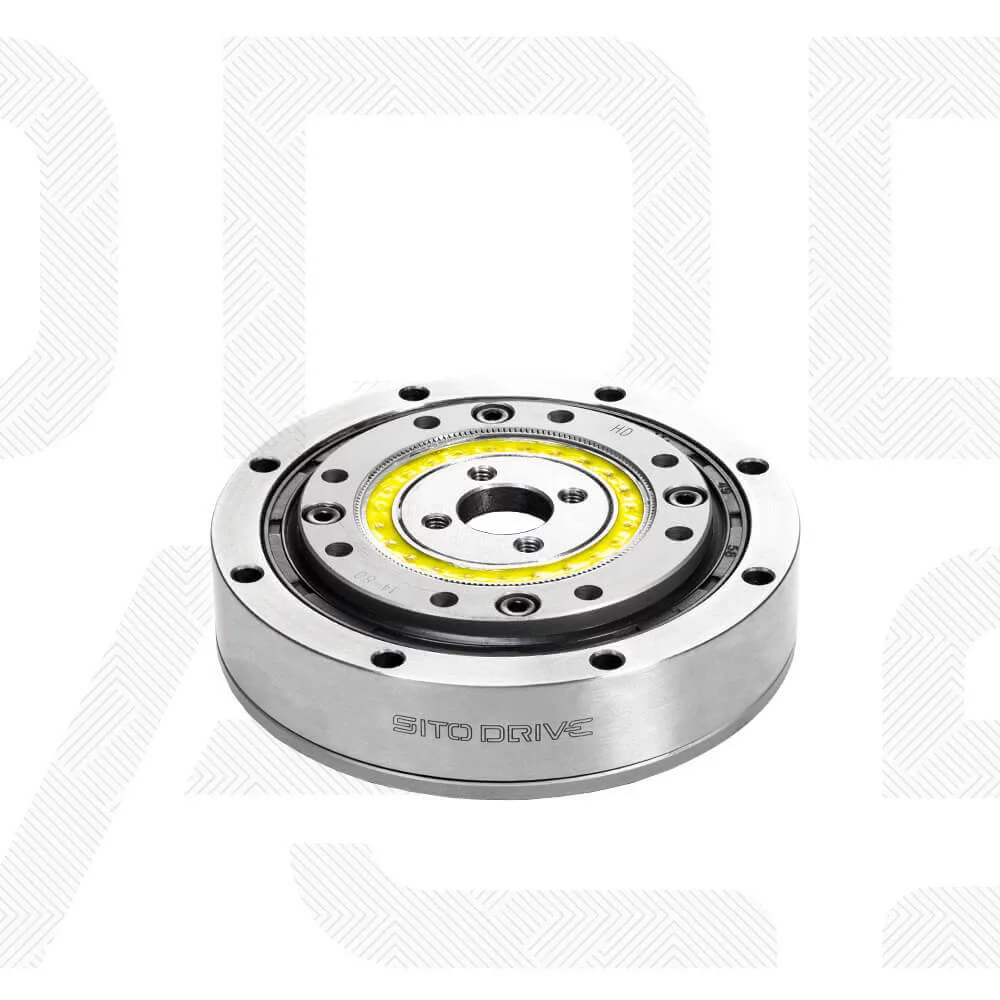

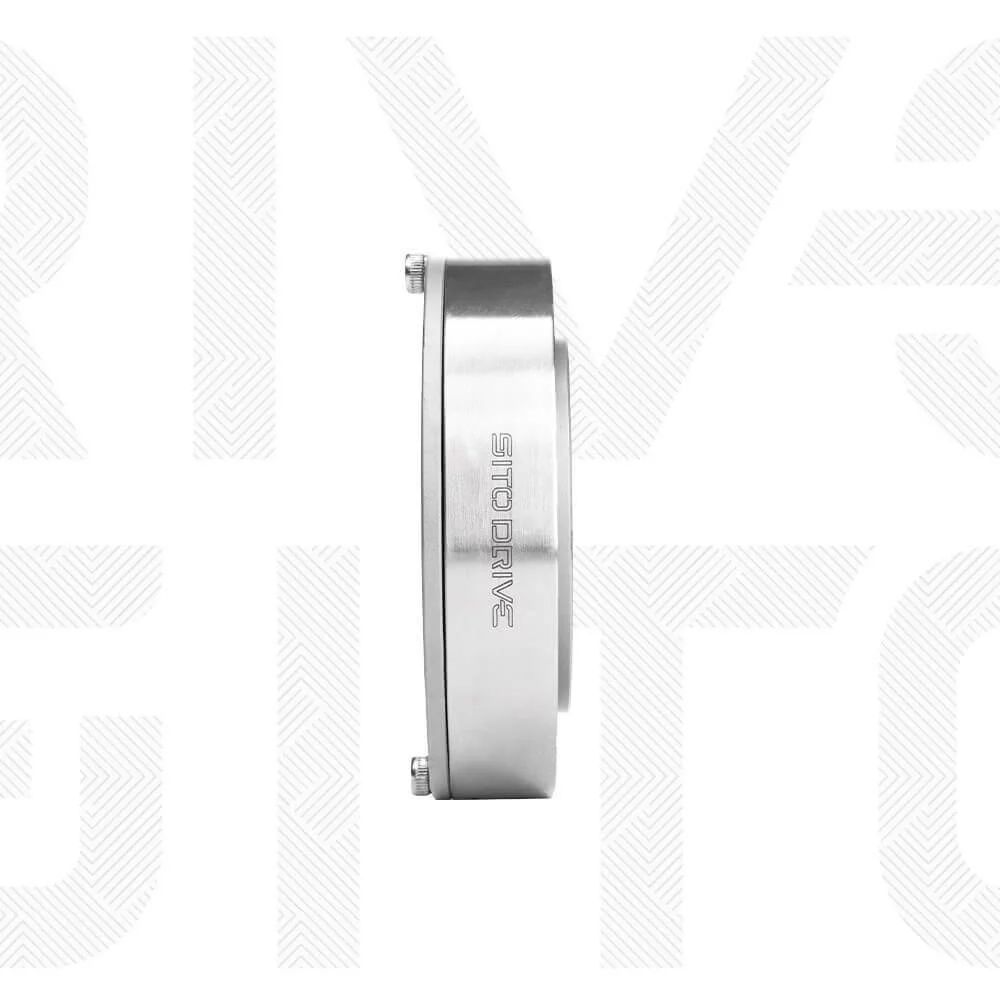

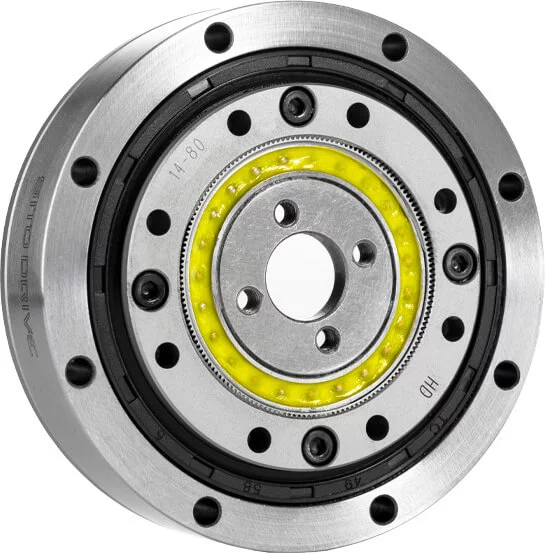

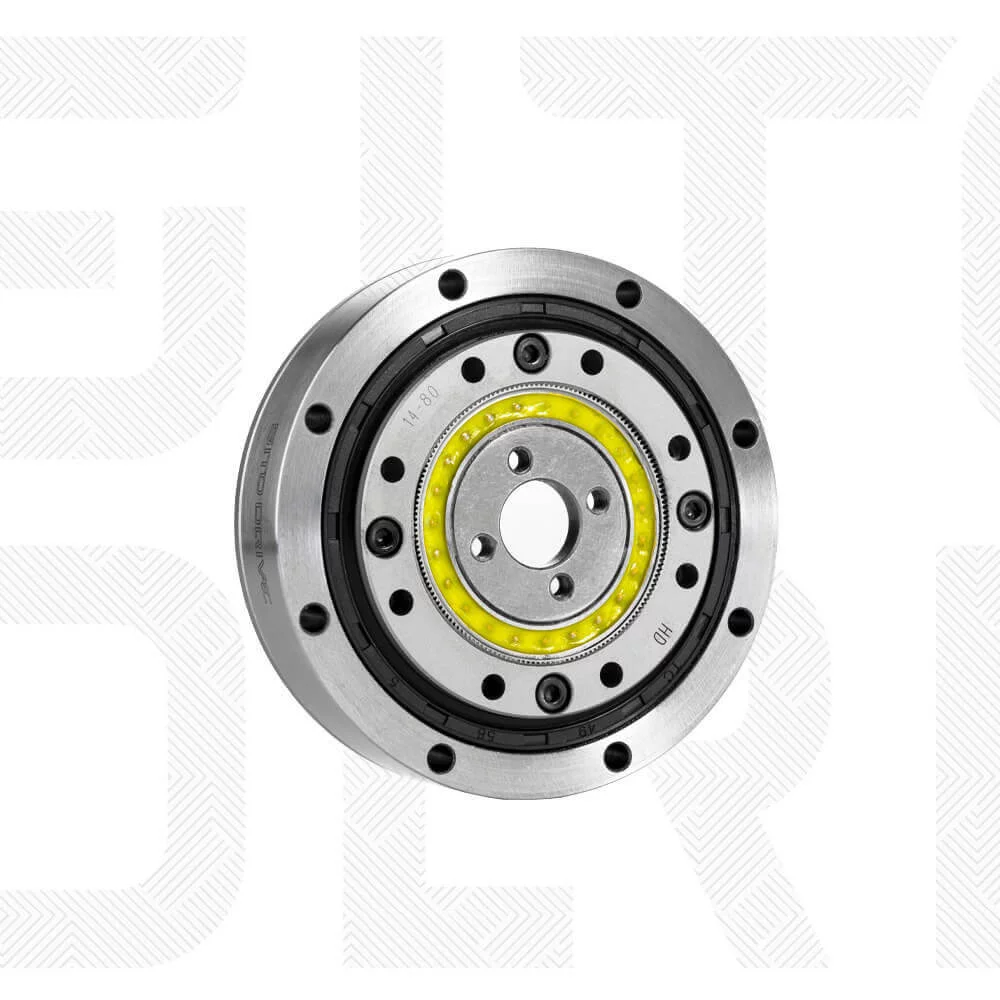

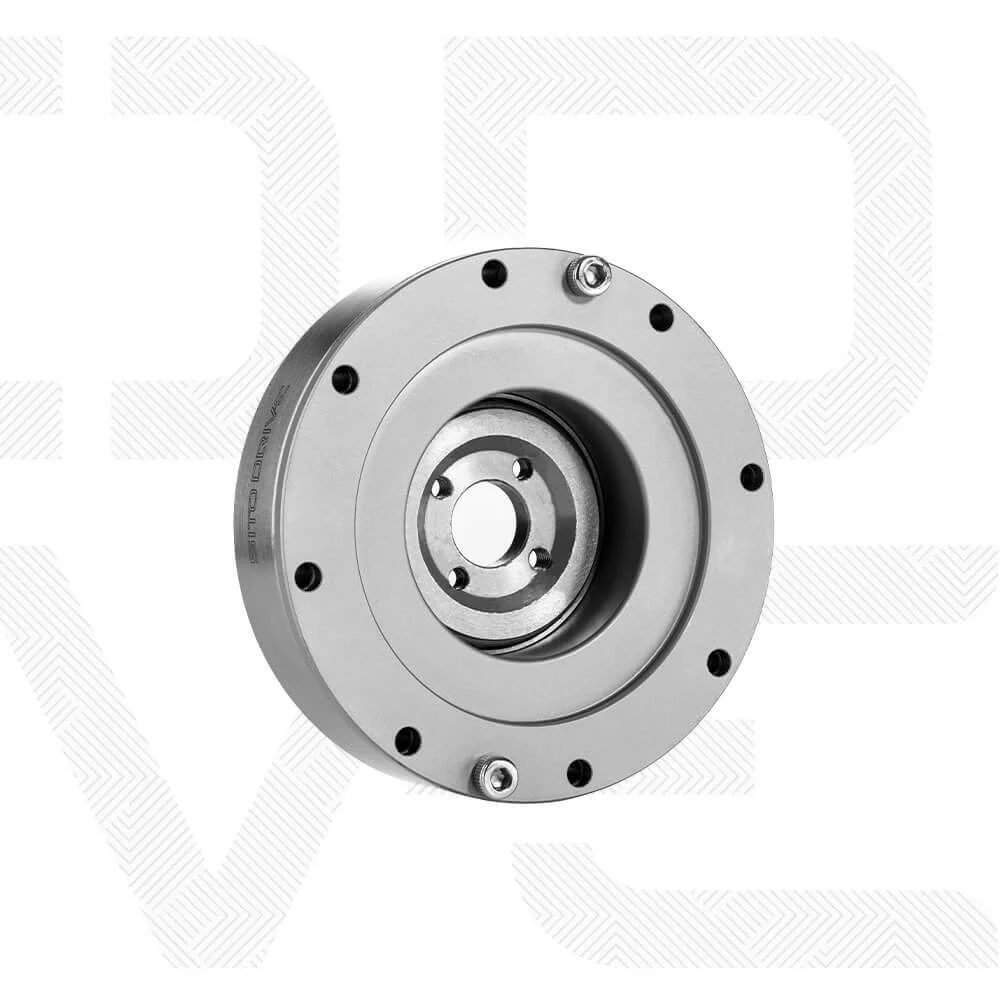

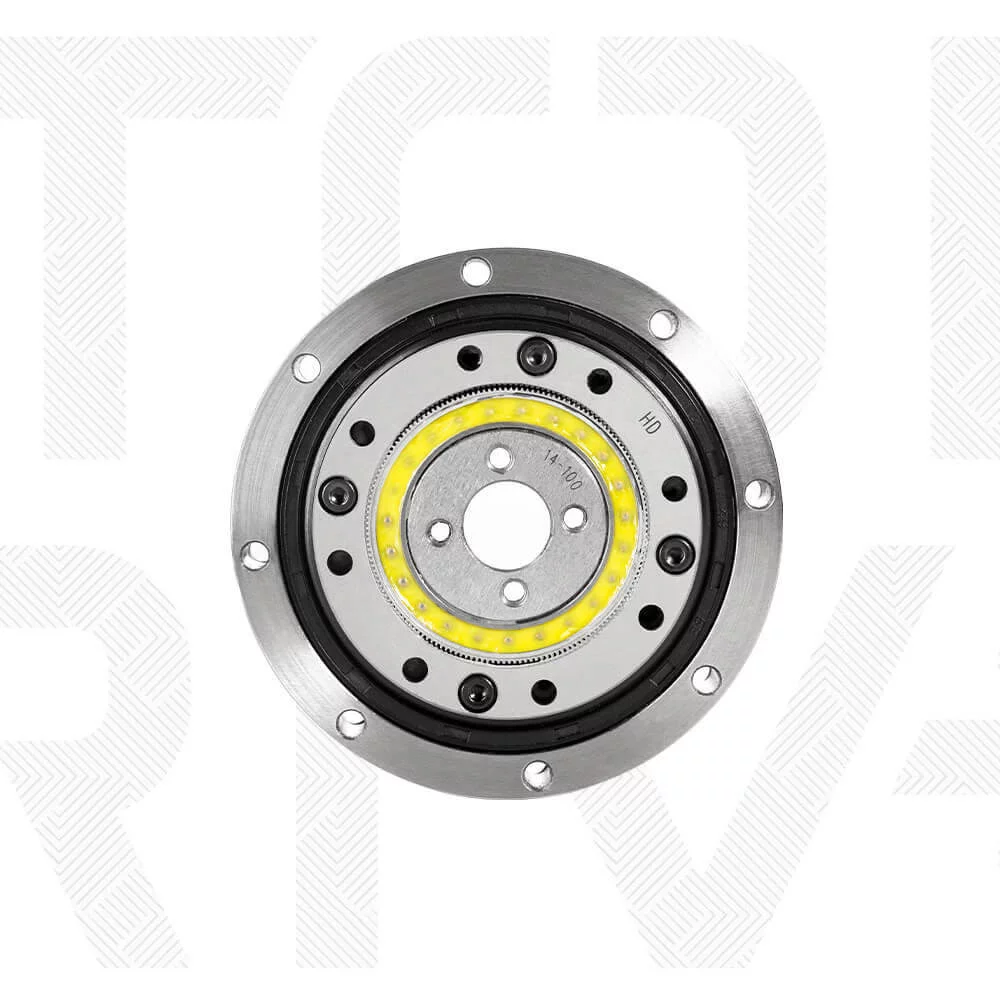

Family SitoDrive HD-14 Linear Motion Harmonic Drive Nema 17 Motor 50:1 Integrated Ball Screw for CNC Z-Axis & Elevator Actuators SHD-14

SitoDrive HD-14 Linear Motion Harmonic Drive Nema 17 Motor 50:1 Integrated Ball Screw for CNC Z-Axis & Elevator Actuators SHD-14

10% Cashback；Import charges included

Amount:

$0 $0

Speed Ratio

30

50

80

100

Add to Cart

Buy Now

HD-14

HD系列谐波减速器

直径 : 70 mm

厚度 : 17.5 mm

重量 : ≤0.312 kg

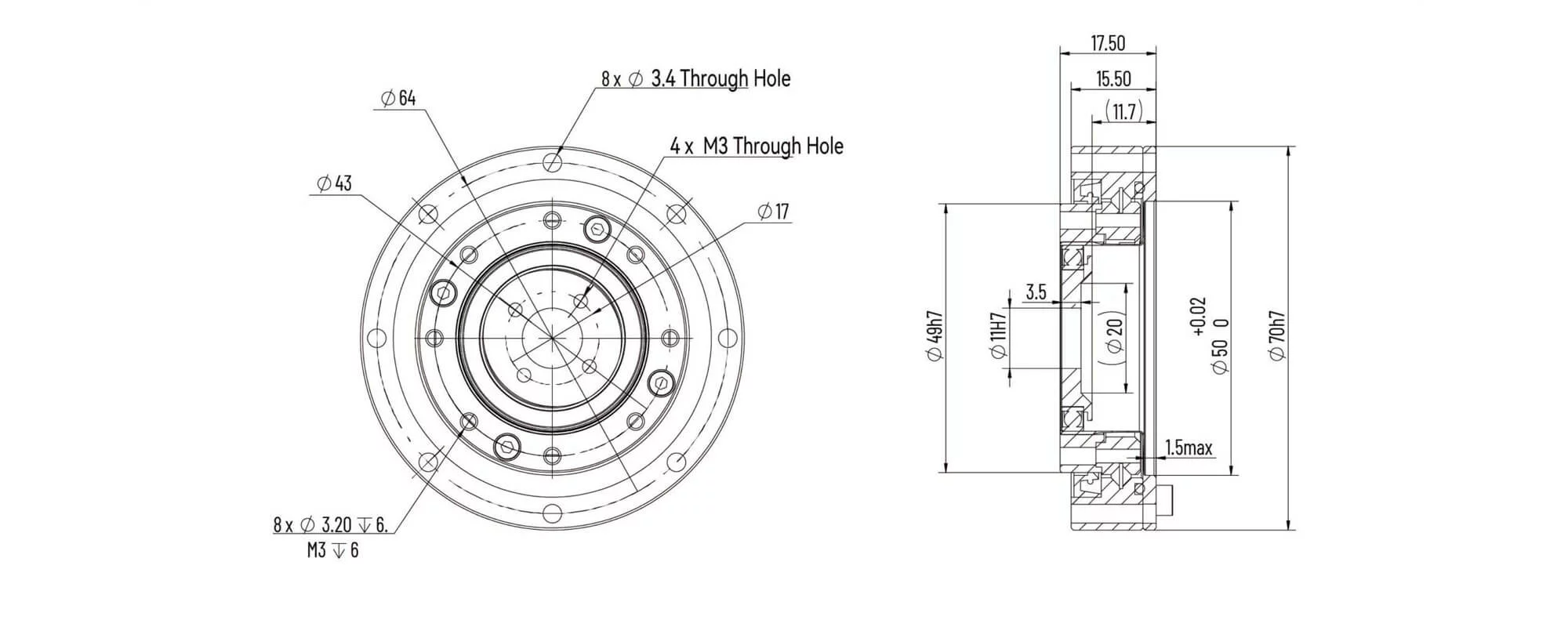

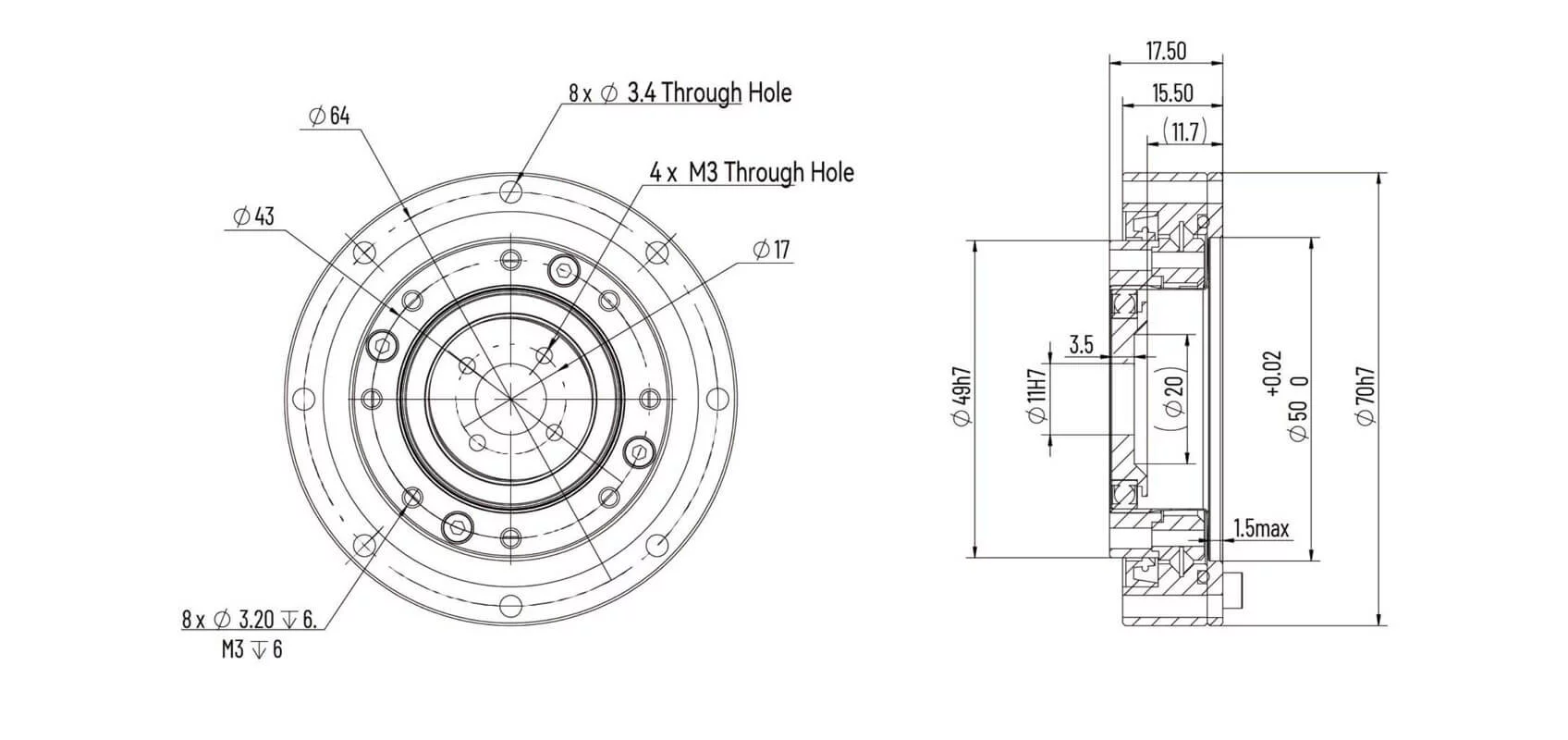

孔位安装平面图

单位 : mm

HD-14 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

4.5

7.4

起动停止时的容许峰值转矩 [ Nm ]

8.7

平均负载转矩的容许最大值 [ Nm ]

6.2

6.8

9.5

10.8

瞬间容许最大转矩 [ Nm ]

容许最高输入转速 [ rpm ]

8500

容许平均转速 [ rpm ]

3500

转动惯量 [ Ix10^-4 kgm^2 ]

0.021

背隙 [ Arcsec ]

≤20

≤10

TA-40

TA-52

TA-70

TA-80
