    Family Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator
    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator

    Sito TA70 24V Can Micro PTZ Motor Bldc Servo Drive Motor 100 Ratio Small Harmonic Drive Gearmotor Robot Joint Actuator

    10% Cashback；Import charges included

    Amount:
    $0 $0
    • Gear Count
      50
      100
    1
    Add to Cart
    Buy Now

    TA-70

    TITAN SMART ACTUATOR

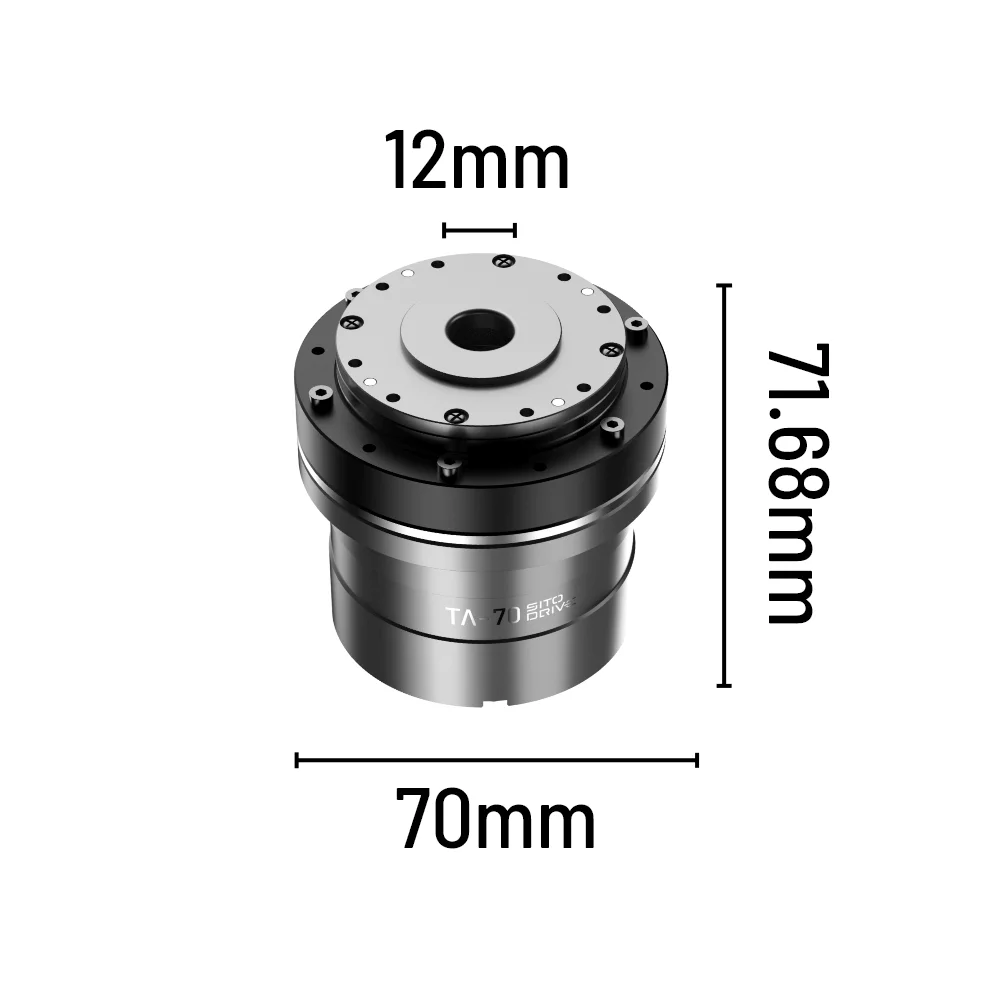

    Diameter: 70mm

    Length: 71.68mm

    Weight: 0.76kg-0.8kg

    Hollow hole diameter: 12mm

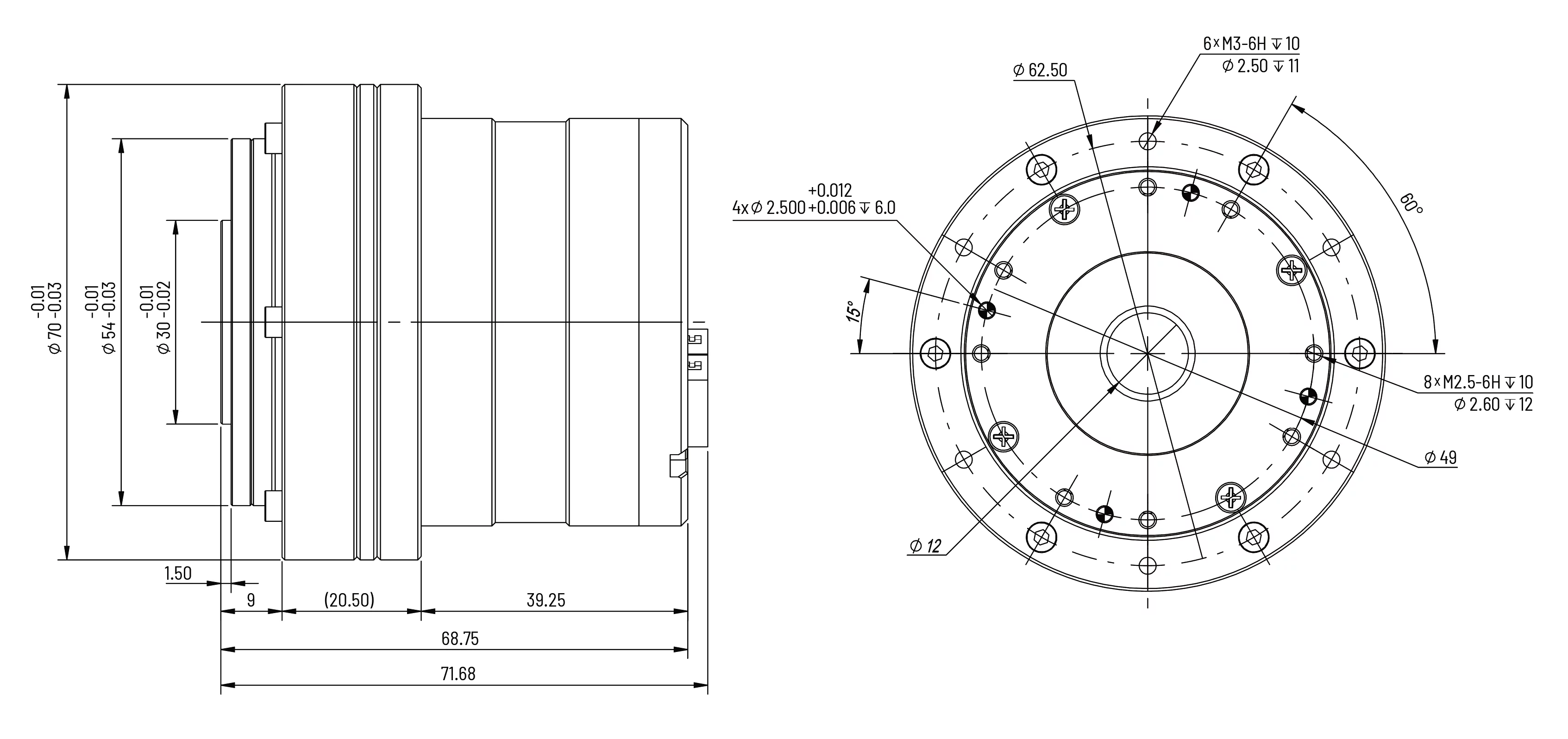

    Hole installation Diagram

    Unit:mm

    TA-70 Parameter

    Gear Ratio

    50

    100

    Rated Torque at 2000 rpm [Nm]

    11

    16

    Limit for Repeated Peak Torque [Nm]

    23

    37

    Limit for Momentary Peak Torque [Nm]

    30

    60

    Working Temperature [°C]

    -40-80

    -40-80

    Repeat Positioning Accuracy [arcsec]

    30

    15

    Absolute Positioning Accuracy [arcsec]

    120

    100

    Maximum Output Speed [rpm]

    80

    40

    Supply Voltage [V]

    10-60 Recommended 24V

    10-60 Recommended 24V

    Rated Power [W]

    60

    72
