Family Sito Ta52 Ptz Motor Module Motorised Rs485 Servo Actuator Motor with Brake Dual Encoders Hollow Harmonic All-in-One Robot Joint

10% Cashback；Import charges included

Amount:

$0 $0

Add to Cart

Buy Now

TA-52

TITAN SMART ACTUATOR

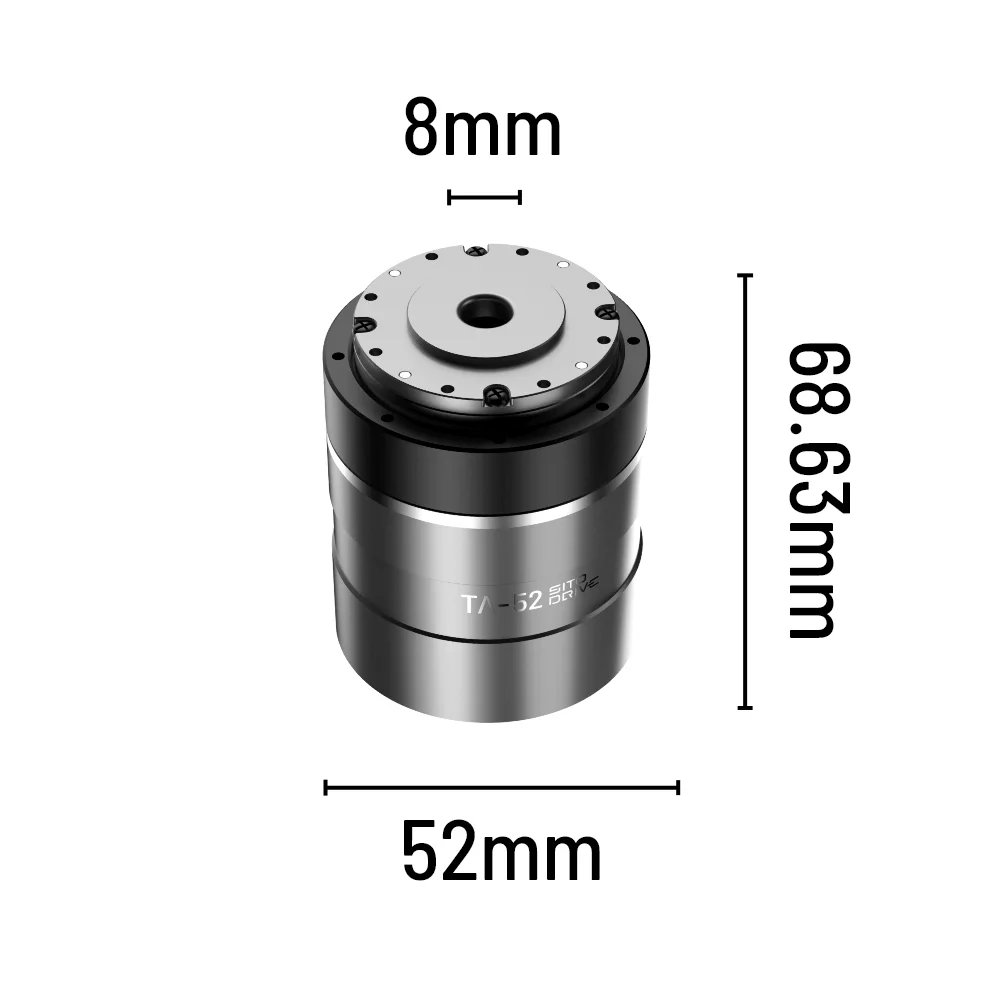

Diameter: 52mm

Length: 68.63mm

Weight: 0.47kg-0.5kg

Hollow hole diameter: 8mm

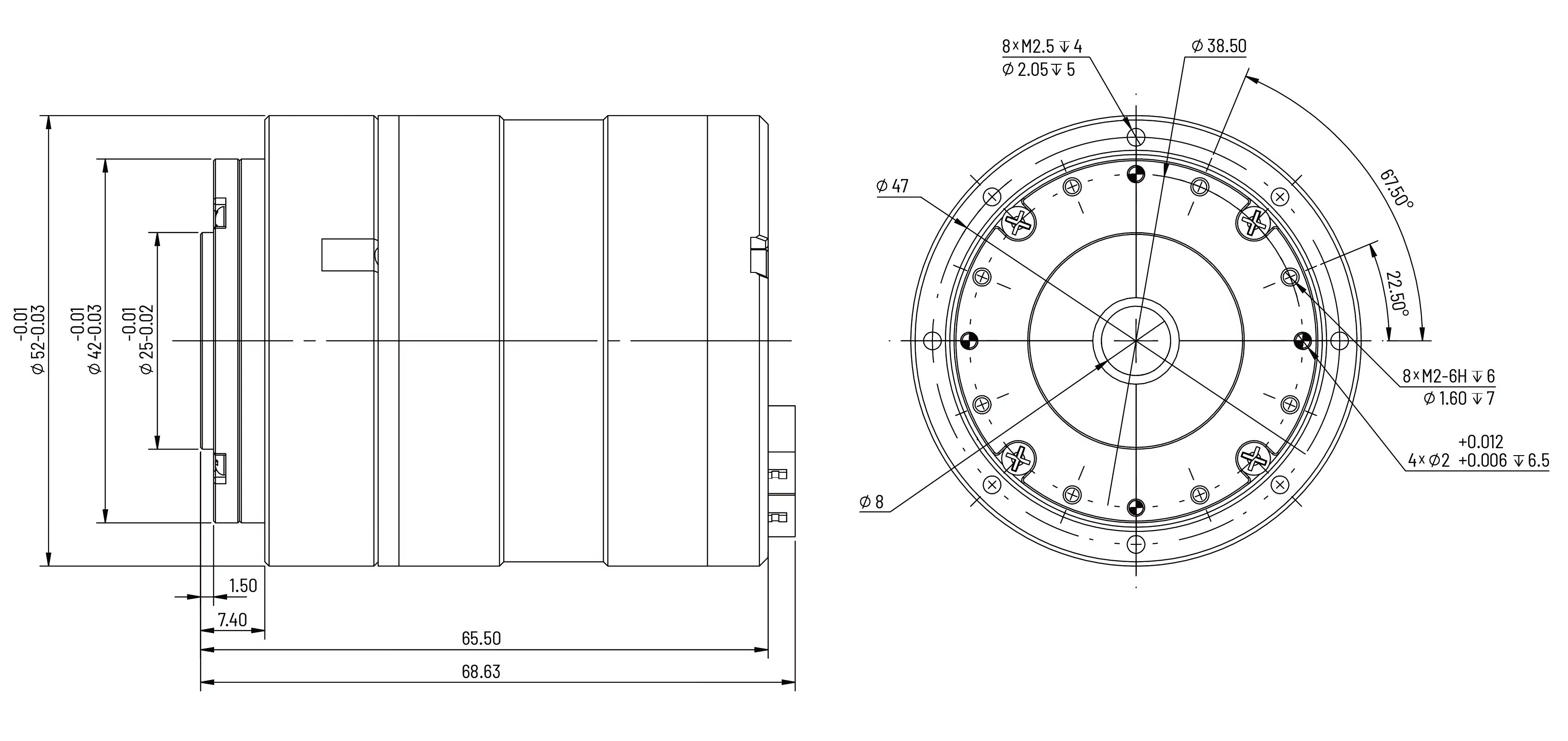

Hole installation Diagram

Unit:mm

TA-52 Parameter

Gear Ratio

100

Rated Torque at 2000 rpm [Nm]

3.7

5.4

Limit for Repeated Peak Torque [Nm]

Limit for Momentary Peak Torque [Nm]

Working Temperature [°C]

-40-80

Repeat Positioning Accuracy [arcsec]

Absolute Positioning Accuracy [arcsec]

120

100

Maximum Output Speed [rpm]

Supply Voltage [V]

10-60 Recommended 24V

Rated Power [W]
