TA-40

TITAN SMART ACTUATOR

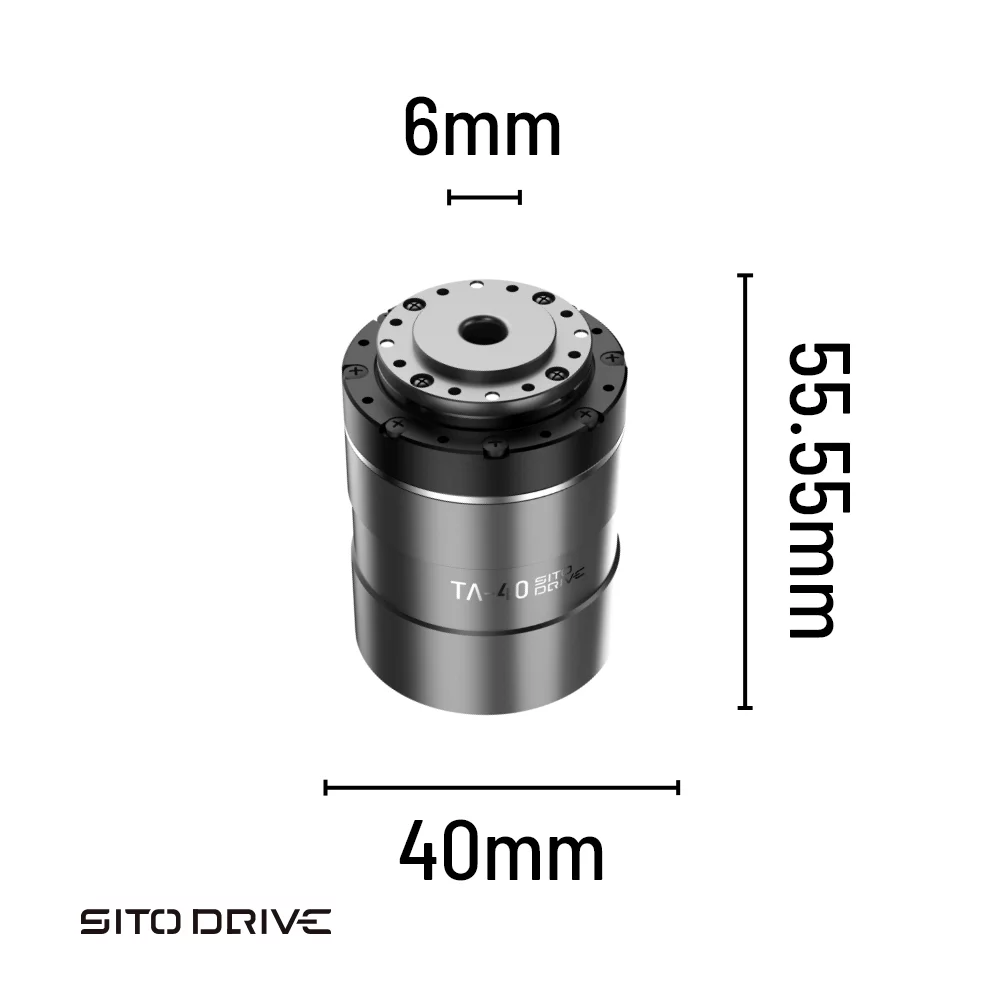

Diameter: 40mm

Length: 55.55mm

Weight: 0.21kg-0.23kg

Hollow hole diameter: 6mm

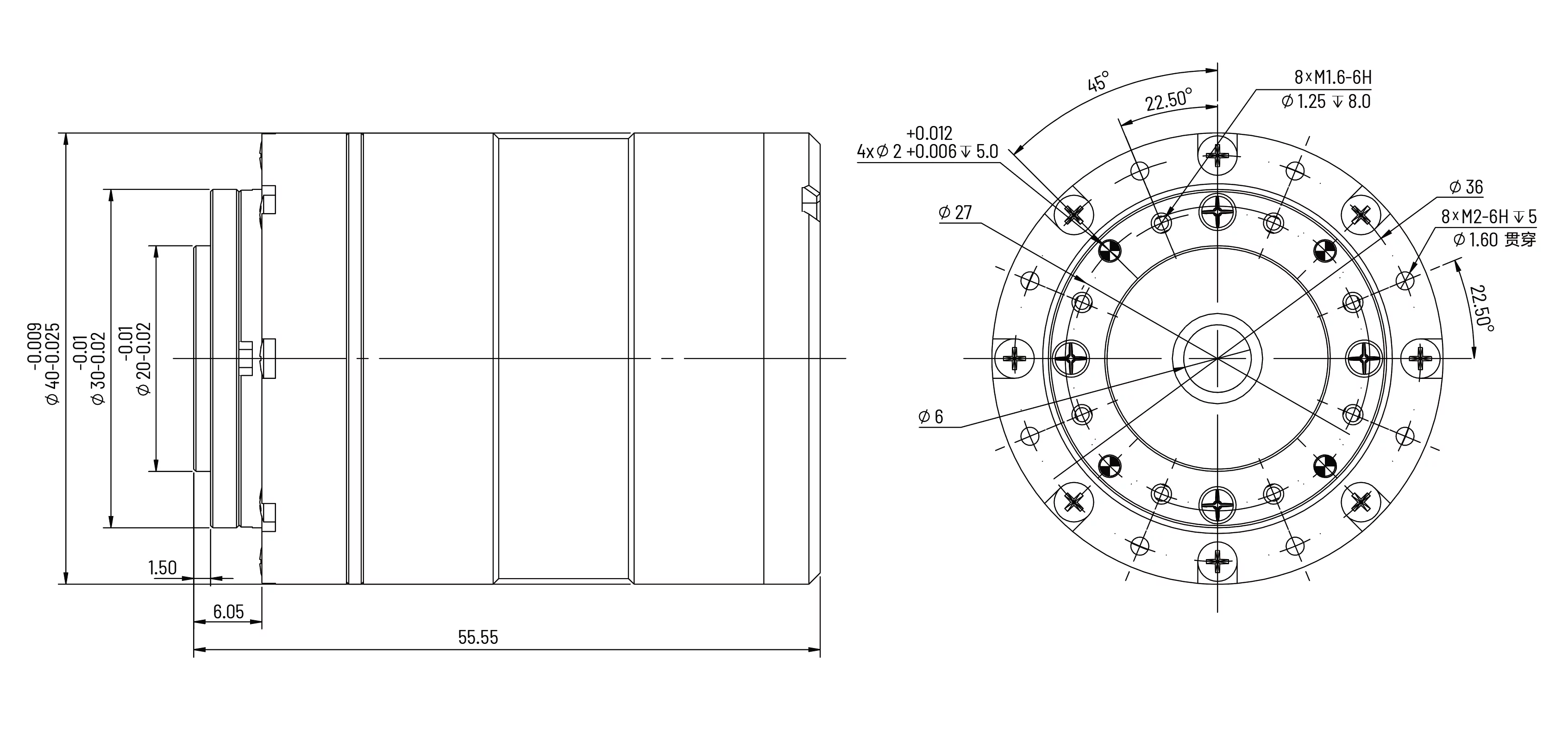

Hole installation Diagram

Unit:mm

TA-40 Parameter

Gear Ratio

100

Rated Torque at 2000 rpm [Nm]

1.6

2.4

Limit for Repeated Peak Torque [Nm]

3.3

4.8

Limit for Momentary Peak Torque [Nm]

6.6

Working Temperature [°C]

-40-80

Repeat Positioning Accuracy [arcsec]

Absolute Positioning Accuracy [arcsec]

120

100

Maximum Output Speed [rpm]

Supply Voltage [V]

10-60 Recommended 24V

Rated Power [W]
