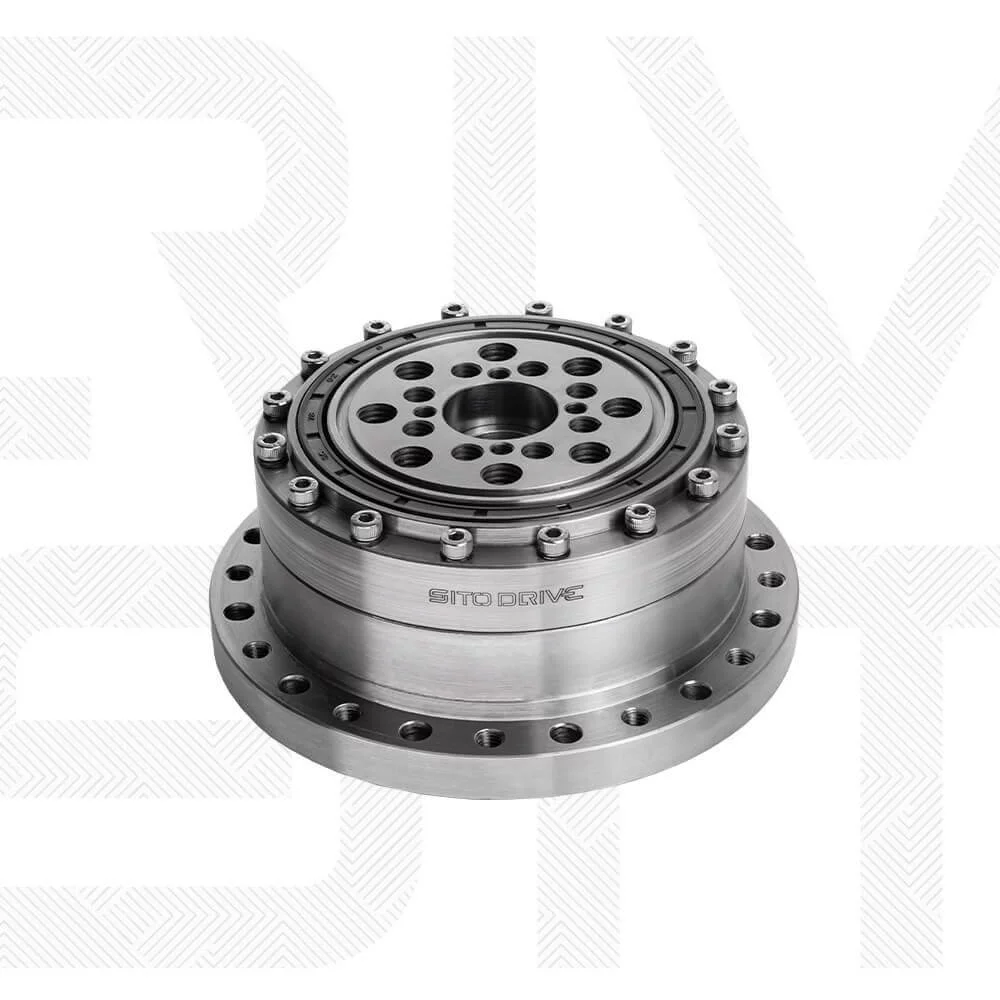

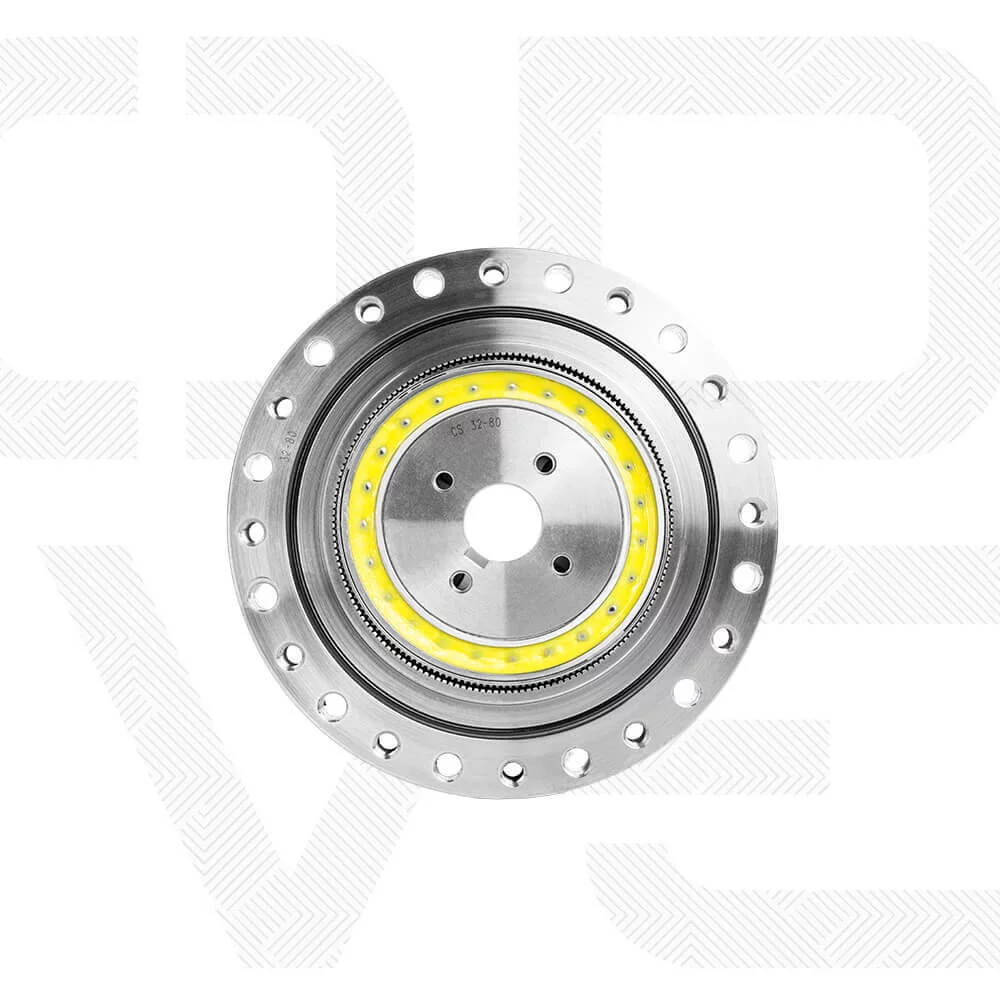

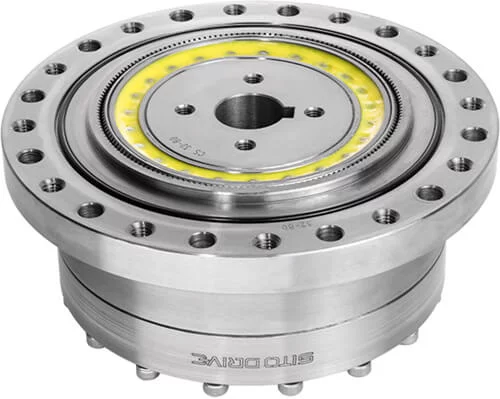

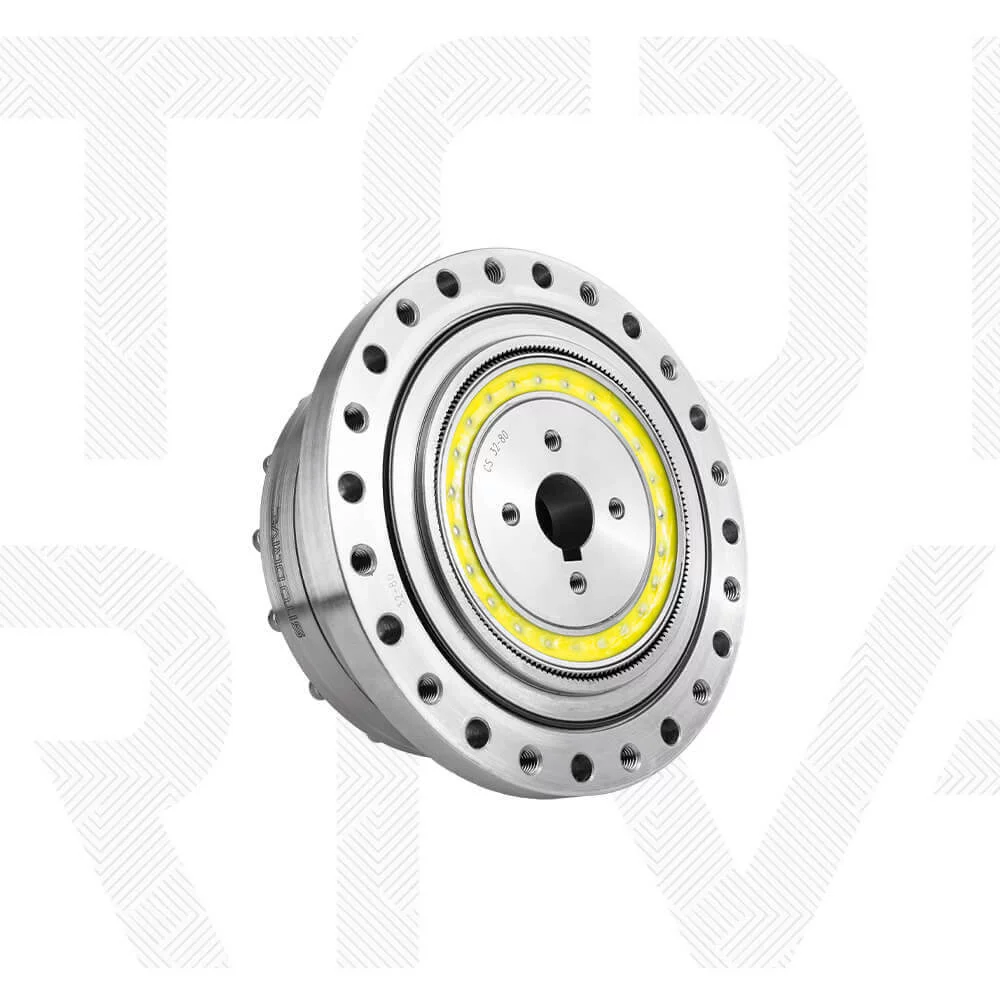

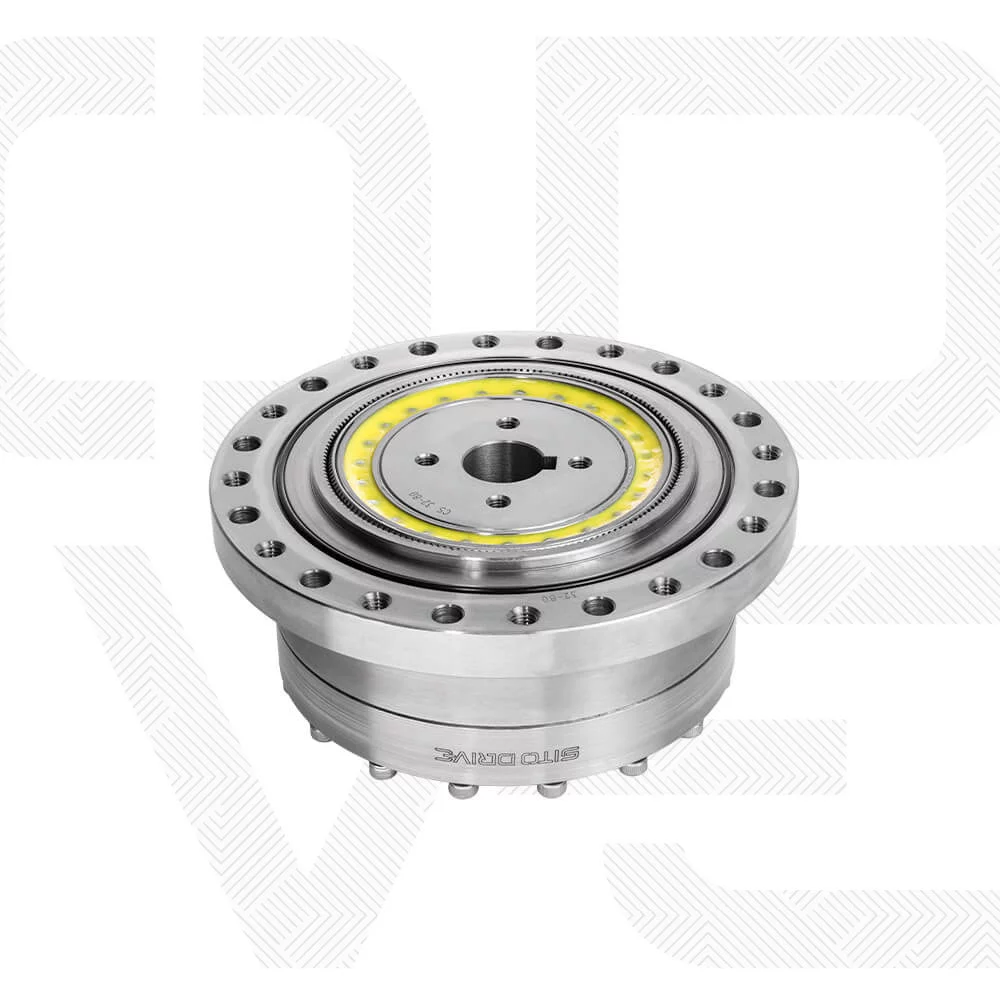

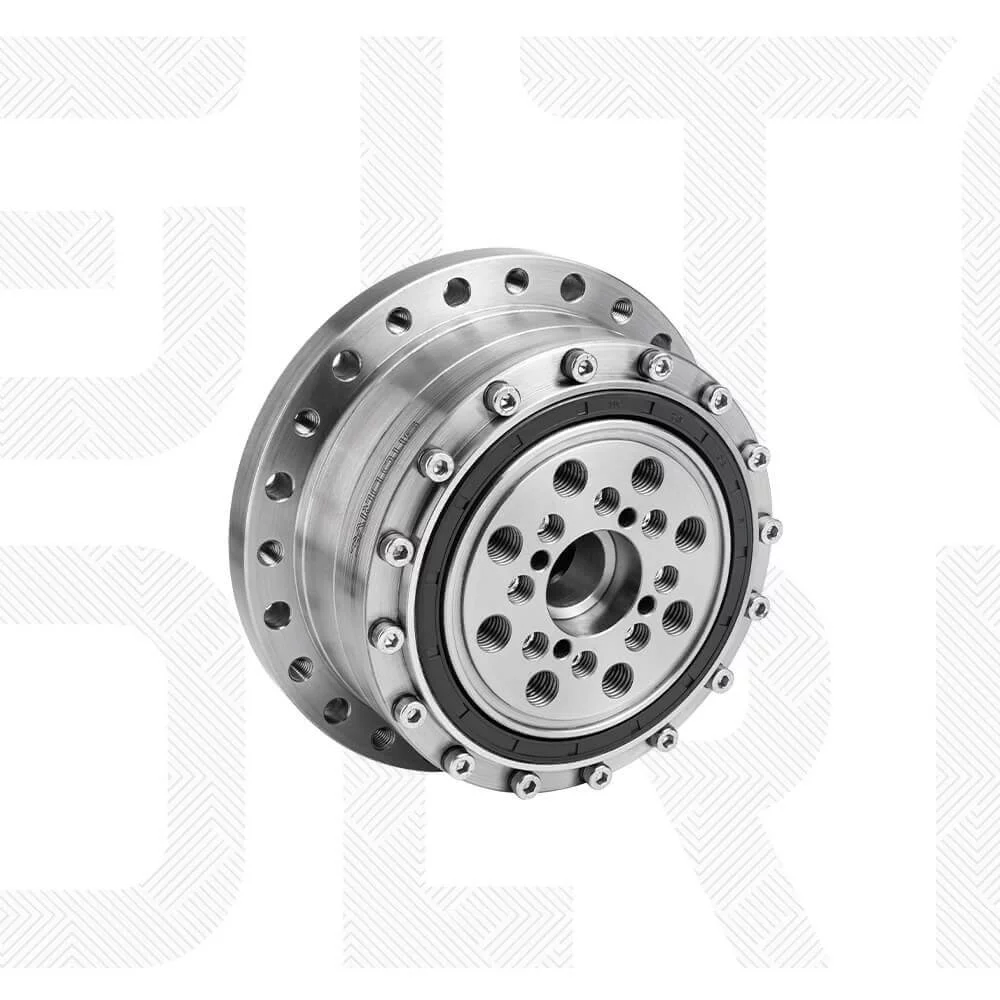

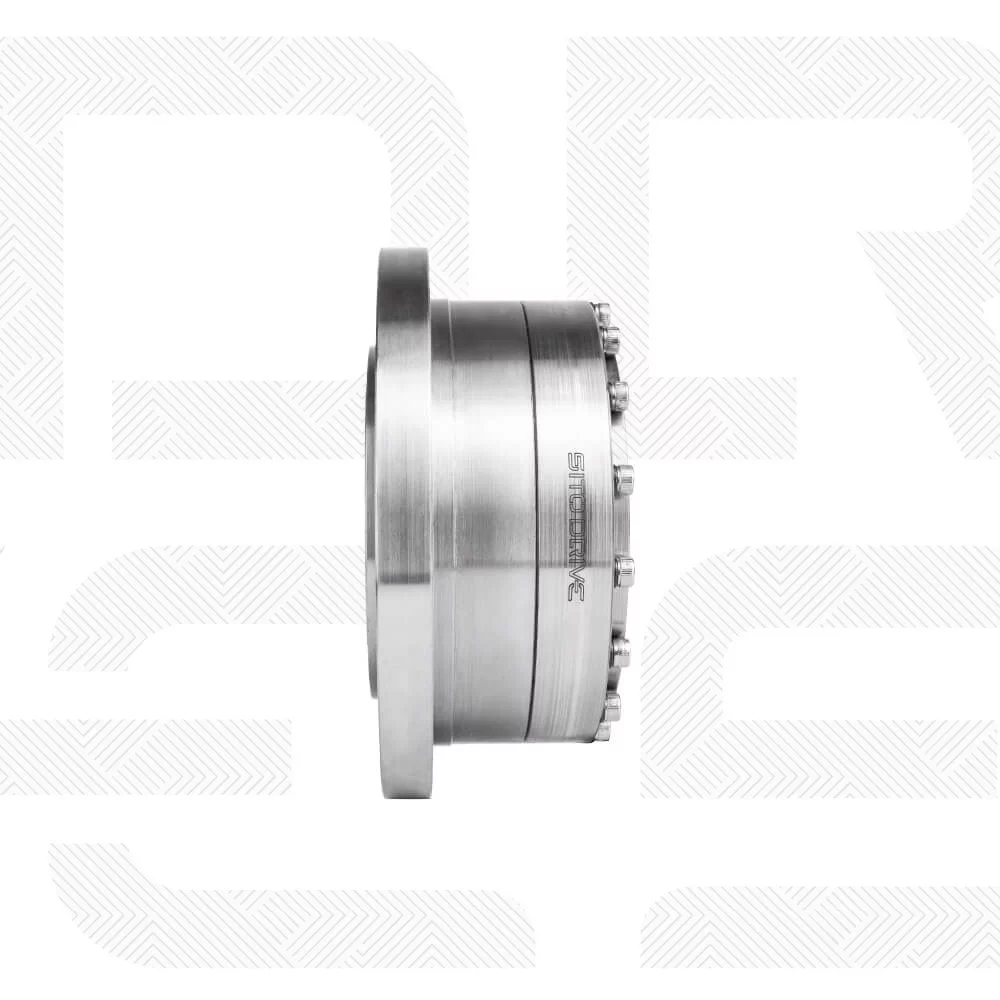

Family SitoDrive CS-32-II Harmonic Drive CSF-32-II High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor

SitoDrive CS-32-II Harmonic Drive CSF-32-II High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor

10% Cashback；Import charges included

Amount:

$0 $0

Speed Ratio

50

80

100

120

Add to Cart

Buy Now

CS-32-II

CS系列-一体型谐波减速器

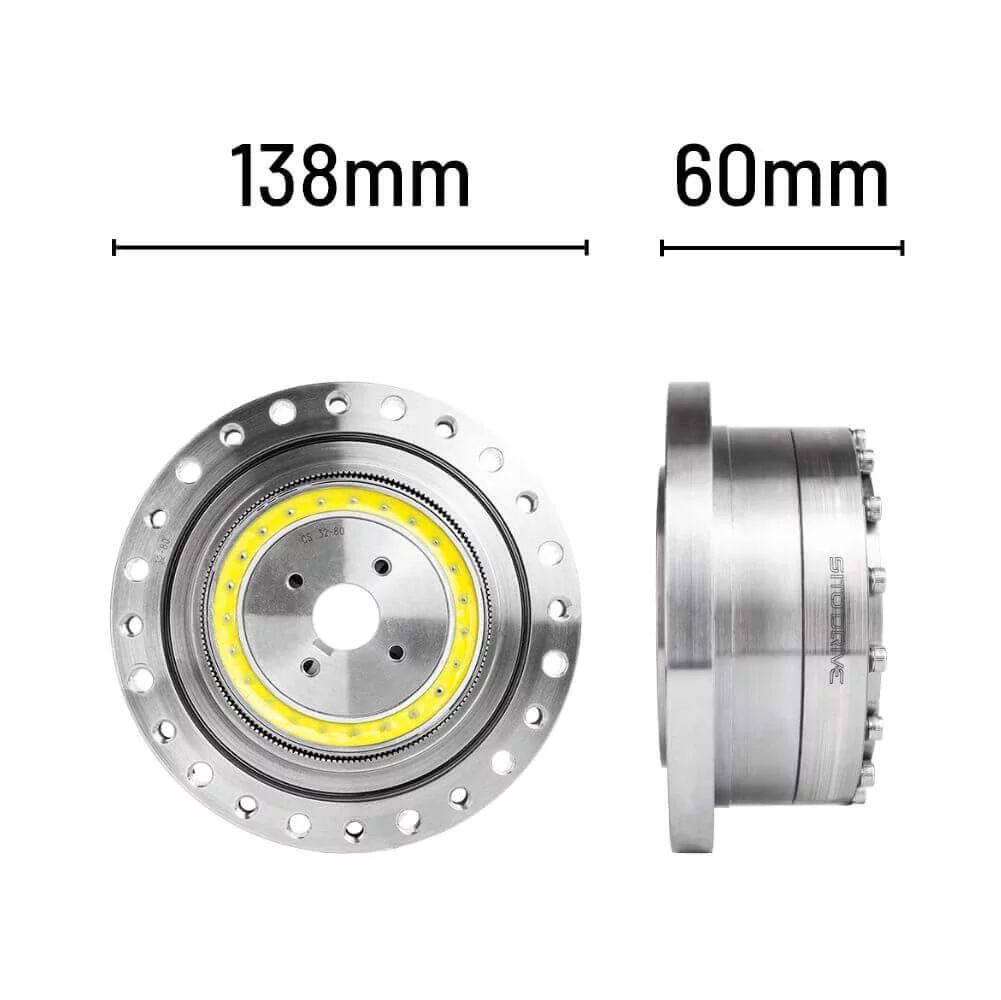

直径 : 138 mm

厚度 : 60 mm

重量 : ≤ 3.1 kg

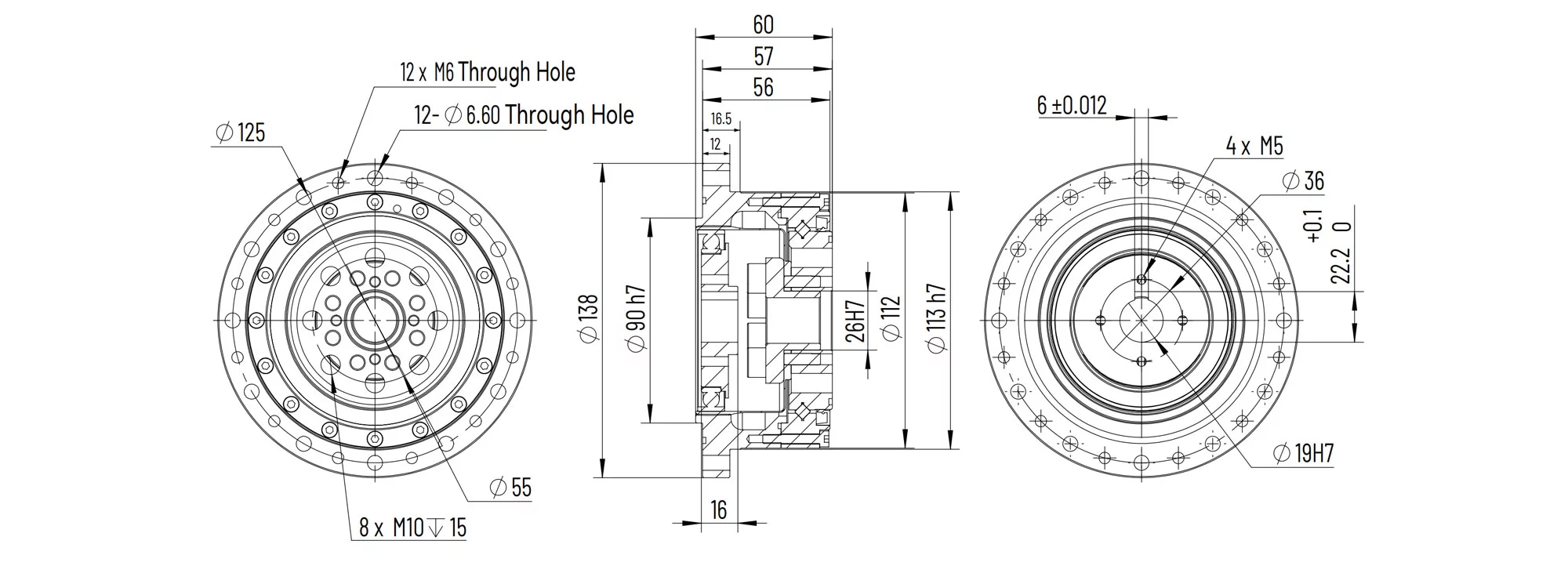

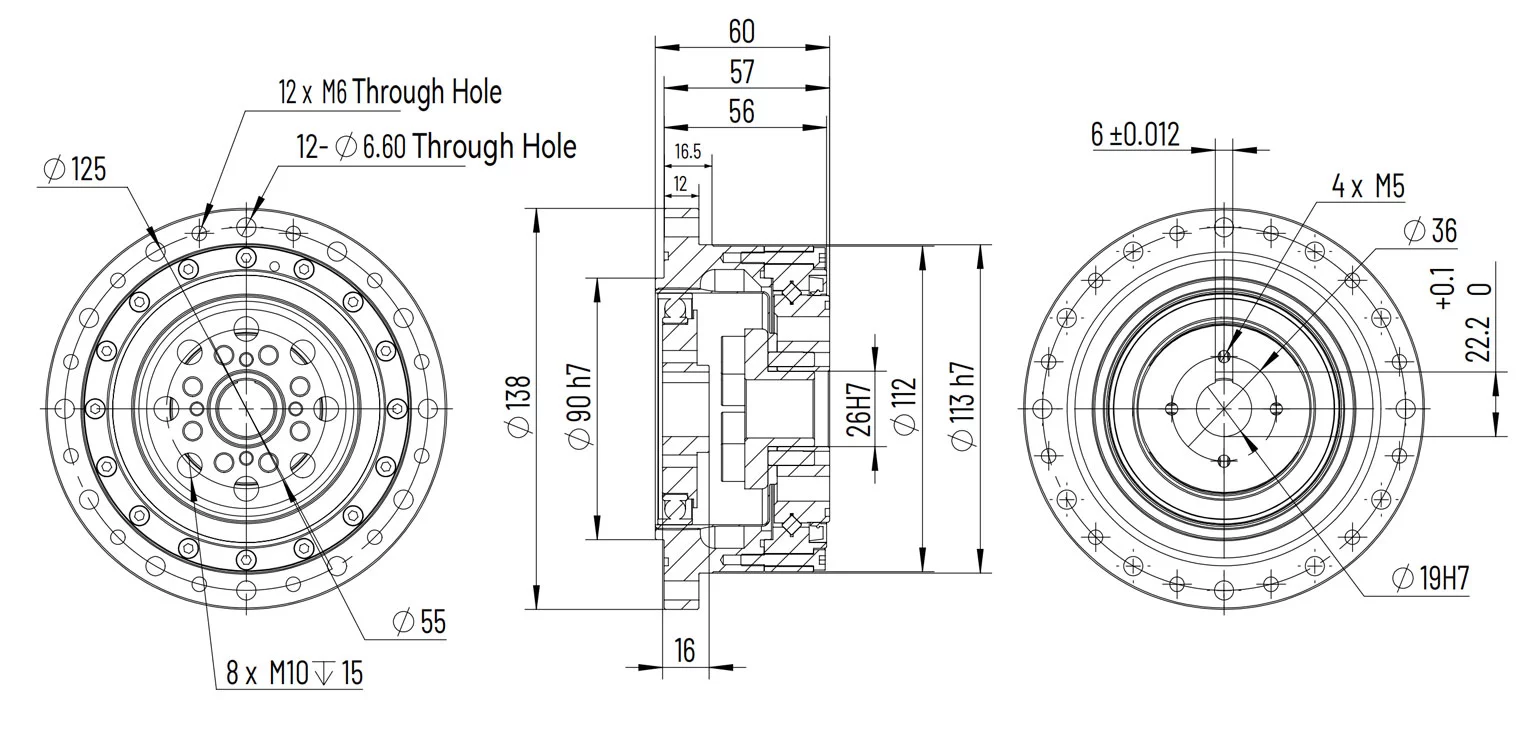

孔位安装平面图

单位 : mm

CS-32 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

118

137

152

起动停止时的容许峰值转矩 [ Nm ]

216

304

333

353

平均负载转矩的容许最大值 [ Nm ]

108

167

216

240

瞬间容许最大转矩 [ Nm ]

382

568

647

686

容许最高输入转速 [ rpm ]

4800

容许平均转速 [ rpm ]

3500

转动惯量 [ Ix10^-4 kgm^2 ]

1.69

背隙 [ Arcsec ]

≤20

≤10
